Services
Field Services
From the initial analysis through to commissioning, R3 Solutions provides on-site support for industrial wireless projects. Planning, deployment, optimization, and long-term support are handled by experienced R3 engineers.
Menu
Overview
R3 Solutions does more than just provide you with the right hardware. We achieve maximum performance through our on-site services at the customer’s location. This allows us to respond to individual circumstances and optimize wireless communication for the highest reliability, functional safety, and real-time communication.
A typical project workflow includes the following four steps:
1. Project Assessment
The start of every wireless project. We turn vague requirements into a concrete implementation plan—with clear technology recommendations, a technical assessment, and a realistic rough cost estimate. Together, we analyze relevant requirements, environmental conditions, and existing infrastructure to identify risks early on and define the appropriate wireless architecture.
Current Status:
- Unclear Requirements
- Several potential technologies
- No cost estimate
- Uncertainty about feasibility
- No specific implementation plan
Target state:
- Clear Technology Recommendation
- Feasibility Assessment
- Rough cost estimate
- Next Steps Defined
- Basis for the Project Plan
The duration of a typical assessment depends on the complexity of the application, the technologies used, and the availability of relevant information. The goal is to evaluate technical requirements early on and establish a solid foundation for further planning.
Many assessments can be conducted remotely. However, for complex installations, challenging environmental conditions, or when RF measurements are required, an on-site visit with R3 engineers is recommended.
For the assessment, we need basic information about the planned application. This includes, for example, the layout of the installation, the protocols used, a description of the system architecture, as well as relevant environmental conditions and safety requirements.
Application Analysis
- Layout and Communication Zones
- Environmental Conditions (Temperature, Pressure)
- IP Protection Rating and Shock Factors
Protocol Identification
- Industrial Protocols Used
- Timing Requirements and Payloads
- Proprietary Traffic
RF Planning
- Coverage Area and Range
- Channel Planning and Interference
- Number of Devices Required
Handover Requirements
- Mobility and Movement Patterns
- Handover Times
- Roaming Requirements
Network Topology
- Users per EchoRing network
- Network segmentation
- Redundancy requirements
Coexistence
- Existing wireless networks
- Spectrum analysis
- Coexistence management
2. Network Solution Plan
The blueprint for the wireless project. The network solution plan translates the results of the project assessment into a concrete technical implementation concept—including architecture, network design, hardware recommendations, and integration strategy.
Factors such as wireless coverage, roaming behavior, redundancies, safety requirements, IT security, and future scalability are taken into account. The result is comprehensive technical documentation that serves as the basis for the delivery, integration, and long-term operation of the wireless infrastructure.
Current Status:
- Assessment results are in — technology has been selected
- A rough cost estimate, but no concrete implementation plan yet
- Unresolved Questions Regarding Channel Planning, Number of Devices, and Topology
- No mandatory configuration requirements
Target State:
- Complete Implementation Blueprint
- Topology, channel, and configuration decisions documented
- Test and Validation Plan for Commissioning
- Can be implemented by R3 Solutions or a system integrator
The development of the network solution plan is influenced by various factors that affect the duration of implementation. The basis for its creation is a description of the project requirements that is as precise as possible (see Project Assessment).
PLC Traffic Analysis
- Detailed traffic analysis
- Cycle times and payloads
- Prioritization requirements
Channel Planning
- Spectrum Analysis and Channel Assignment
- On-Site RF Measurements for Interference Avoidance
- Channel Planning for Optimal Performance
Coexistence Management
- Identification of Existing Networks
- Integration with Existing Wireless Networks
- Coexistence Strategies & Spectrum Sharing
Device Positioning
- Precise placement and number of devices
- Coverage heat maps
- Redundancy planning
Topology Documentation
- Comprehensive documentation of the network architecture
- Addressing scheme
- Connection matrix
Configuration Details
- Complete configuration specifications
- Device-specific parameters
- Security configuration
3. Deployment
From plan to operational wireless connection. R3 Solutions handles the turnkey installation and commissioning of the entire wireless infrastructure—from hardware assembly and firmware configuration to network setup, safety tests, and system validation. The result is stable, documented systems with minimal downtime for critical facilities.
Current Status:
- Hardware purchased but not installed
- Network Solution Plan Available
- No validated real-world data
- Lack of expertise on the operations team
Target state:
- Installed, functioning wireless network
- Optimized antenna alignment & validated field data
- On-site employee training
- Complete transfer of know-how and documentation
The prerequisites for deploying the fully functional system are an agreed-upon network solution plan and agreed-upon timelines to enable on-site installation and testing.
Firmware Update
- All devices shipped with the latest firmware
- Project-specific configuration – tested and validated
- Configuration documentation
EchoRing Configuration
- Development of application-specific configurations
- Token Ring parameters & priority class mapping
- Timing optimization

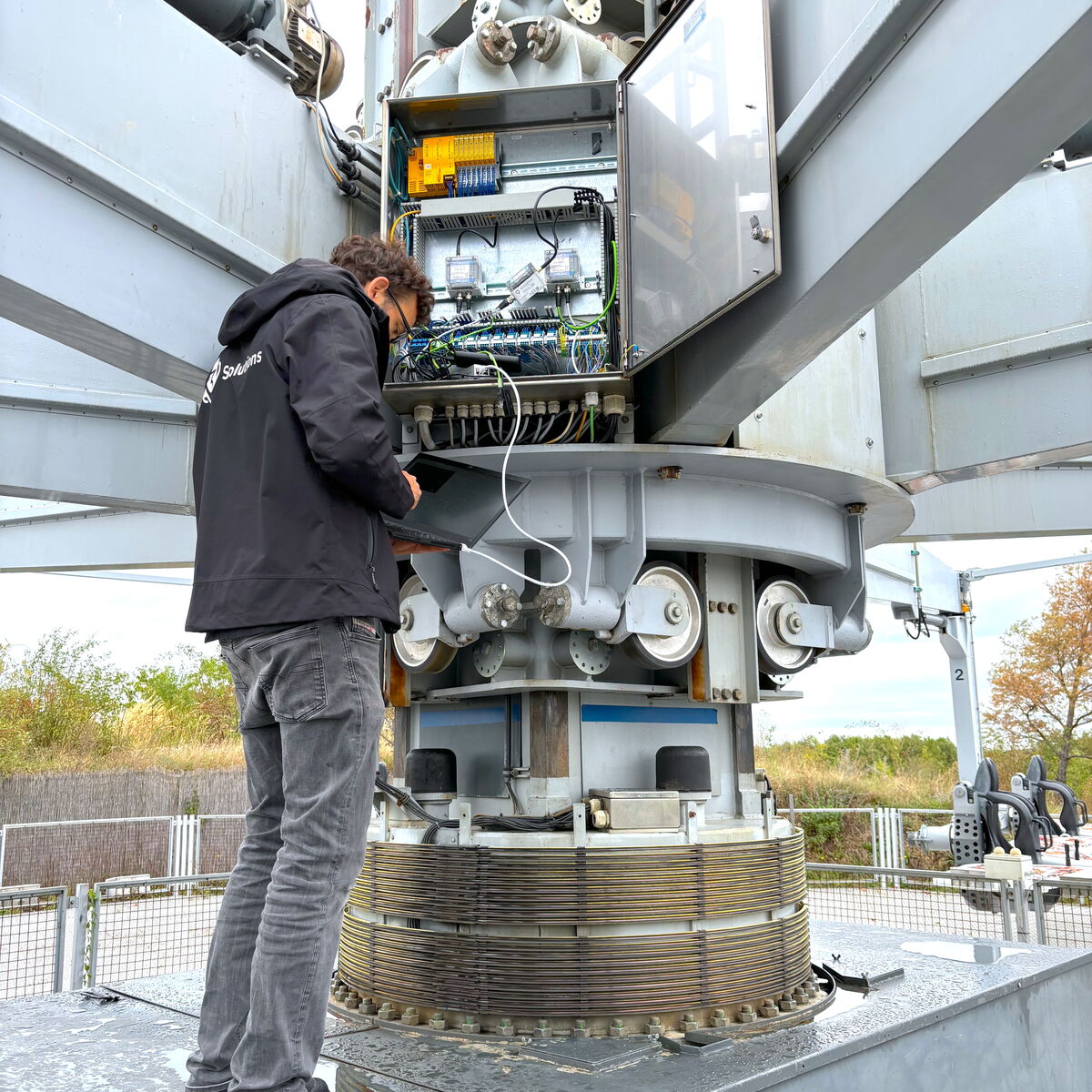

Physical Installation
- Installation and setup of all components
- Optimization of antenna alignment
- Setup of the monitoring system
Comprehensive testing
- Validation of wireless communication
- RF performance measurements
- Handover validation, if applicable
Training & Handover
- Knowledge transfer and formal acceptance
- Training for the maintenance team (monitoring, diagnostics, troubleshooting)
- As-built drawings and maintenance manual
- Functional demonstration and acceptance report
Documentation
- Installation report
- Test results
- Configuration backup
Collaboration with Integrators
R3 Solutions has extensive experience collaborating with external integrators and system houses. Our goal is to make the installation as smooth as possible, regardless of whether it is carried out by our own team or in collaboration with a partner.
Typical Features of Our Collaboration
- Technical Training for Integrators
- Certification Programs
- Installations-Support remote
Benefits
- No requirement to install via R3 Solutions
- Leveraging Existing Relationships
- Leverage local presence
4. Support & Maintenance
Support and maintenance of the installed wireless network. After deployment, we ensure long-term operation and, upon request, handle health monitoring. This ensures optimal performance, even with future changes to the wireless network.
Our long-term support is provided under various service-level agreements that can be selected based on project requirements. These include, for example, regular health checks or dedicated hotlines with guaranteed response times.
Current Status:
- System has been implemented
- R3 Solutions hardware is configured
- Configuration documentation is available
- As-built plan available
Target state:
- Continuous monitoring of radio traffic
- Optimized Wireless Communication (Health Checks)
- All devices are up to date
- Early Detection of Performance Bottlenecks
Dedicated Support Channels
- Support Email: support@r3.group
- Hotline (optional, depending on SLA)
- Ticket System
- Anomaly Detection Before Failure
- Proactive Notifications
Monitoring Tool
- Real-time network monitoring
Firmware Updates (optional)
- Automatic update notifications
- Tested and validated versions
- Rollback option
Periodic Health Checks
- Quarterly system checks
- Performance analyses
- Optimization recommendations
Overview of Service Level Agreements
| Service | Basic | Advanced | Premium |
|---|---|---|---|
| Response Time (Business Hours) | 24 hours | 8 h | 4 hours |
| Phone Hotline | |||
| 24/7 Emergency Support | |||
| Firmware Updates | |||
| Health Checks | Annual | Quarterly | Monthly |
| Dedicated Account Manager |
Every customer’s needs are different, which is why all our service level agreements are tailored to specific requirements. Our wireless experts are happy to assist in determining the appropriate service level agreement.
